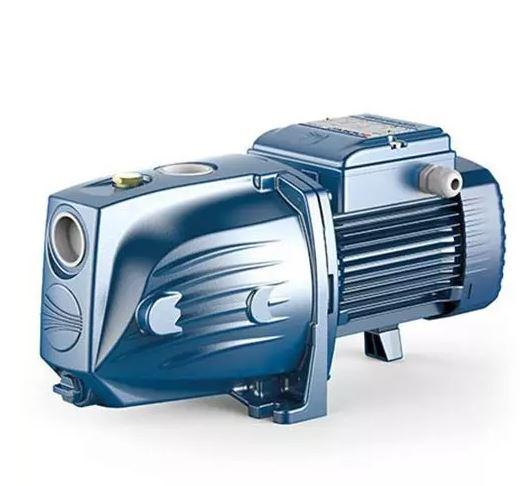

PEDROLLO JSWm MONOBLOCK WATER PUMP

Product Description

The Pedrollo JSWm series are horizontal monoblock centrifugal pumps designed for domestic, agricultural, and light commercial clean water applications. They provide reliable water transfer, tank feed, and pressure boosting with a robust cast iron body and stainless-steel wetted components for long-term durability. The pumps are compact, easy to install, and suitable for continuous operation with thermal overload protection built into the motor.

Key Benefits and Features

• Horizontal monoblock centrifugal design delivers steady flow and pressure for clean water tasks.
• Cast iron pump body with stainless-steel internal components ensures corrosion resistance and durability.
• TEFC motor with thermal overload protection supports safe continuous operation.
• Compact and lightweight for easy installation in confined spaces.
• Suitable for domestic, irrigation, and light commercial water supply applications.

  Essential Specifications

• Motor power: 0.37 kW (~0.5 HP)
• Voltage: Single-phase 220–240 V AC, 50 Hz
• Maximum head: ~22 m
• Nominal flow rate: ~1.8 m³/h
• Speed: ~2900 rpm
• Inlet/outlet: 1″ / 1″ threaded connections
• Pump housing: Cast iron with corrosion-resistant internal components
• Maximum fluid temperature: +35 °C
• Motor protection: Thermal overload
• Typical uses: Domestic water supply, tank feed, small irrigation, pressure boosting
