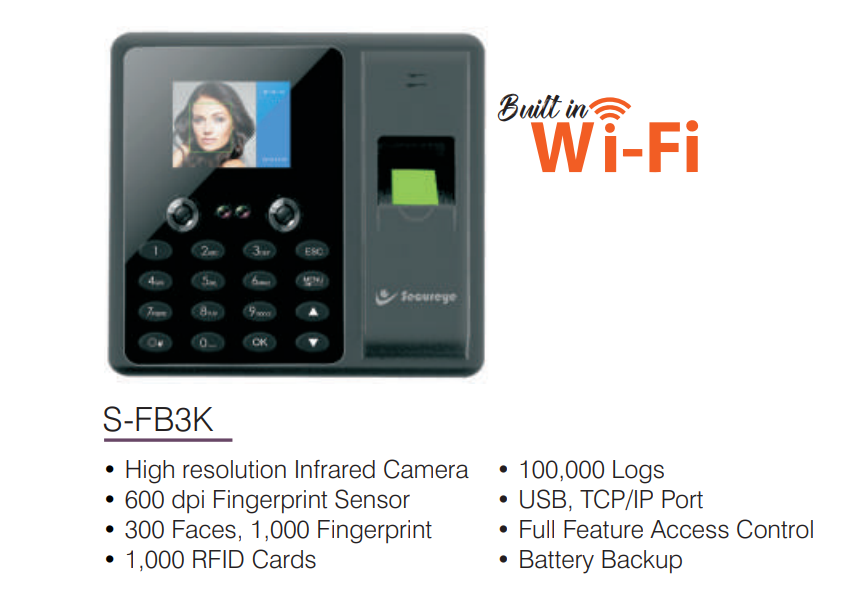

IP FACE & FINGER BIOMETRIC READER

Product Description

The IP Face & Finger Biometric Reader is a network‑ready multi‑biometric access control and attendance terminal that uses both facial recognition and fingerprint scanning for secure authentication. It also supports card and password entry and connects over Ethernet (TCP/IP) or USB for data transfer and integration with access systems. Built for workplaces, schools, clinics and similar environments, it delivers fast recognition, large user capacity and robust event logging for access control and attendance tracking.

Key Benefits and Features

• Multi‑Modal Authentication: Supports face, fingerprint, ID card and password identification for flexible access control.
• High Recognition Accuracy: Uses high‑resolution infrared face camera and 600 DPI optical fingerprint sensor for reliable identification.
• Large User Capacity: Stores up to 1000 face templates and 5000 fingerprint templates — ideal for medium‑sized user populations.
• Fast Matching: Fingerprint matching typically ≤ 1 second; face recognition around ≤ 1.5 seconds.
• Real‑Time Logging: Onboard memory supports a large log capacity (e.g., ~300 000 records) for attendance and access history.
• Networking & Integration: Standard TCP/IP (10/100 Mbps) interface plus USB port for data upload/download; optional Wi‑Fi/RS485/3G support may be available on similar models.
• User Feedback: LED and voice prompts guide users during authentication.
• Door Control Support: Built‑in door open function for direct access control integration.
• Robust Log Handling: Intelligent adaptation and 360° allowable finger orientation improve enrollment and recognition.

Essential Specifications

Biometric & Identification

• Face Capacity: 1000 users
• Fingerprint Capacity: 5000 templates
• Identification Modes: Face / Fingerprint / Card / Password
• Fingerprint Sensor: 600 DPI high‑resolution optical sensor
• Face Camera: Infrared camera for reliable recognition
• Matching Speed: ≤ 1 sec (fingerprint), ≤ 1.5 sec (face)
• Identification Mode: 1:N matching

Display & Interface

• Screen: 6.1 cm (2.4″) TFT LCD
• Keypad: 16‑key input interface
• LED Indicator: Red/Green dual‑color indicator
• Voice Output: Yes (audio prompts)

Communication

• Network: TCP/IP (10/100 Mbps) standard
• USB: USB disk upload/download support
• Optional Interfaces: Wi‑Fi, RS485, 3G (depending on configuration)

Performance & Logs

• Log Capacity: ~300 000 event records
• FAR/FRR (Fingerprint): ~0.00001/0.1 %
• FAR/FRR (Face): ~0.001/1 %
• Allowable Finger Orientation: 360° all directions

Power & Environment

• Operating Voltage: DC 5 V (±5 %) with current below ~0.7 A
• Humidity: ~20 %–80 % RH
• Operating Temperature: −10 °C to +60 °C
• Battery Backup: Optional for continued clock/data during power interruptions
