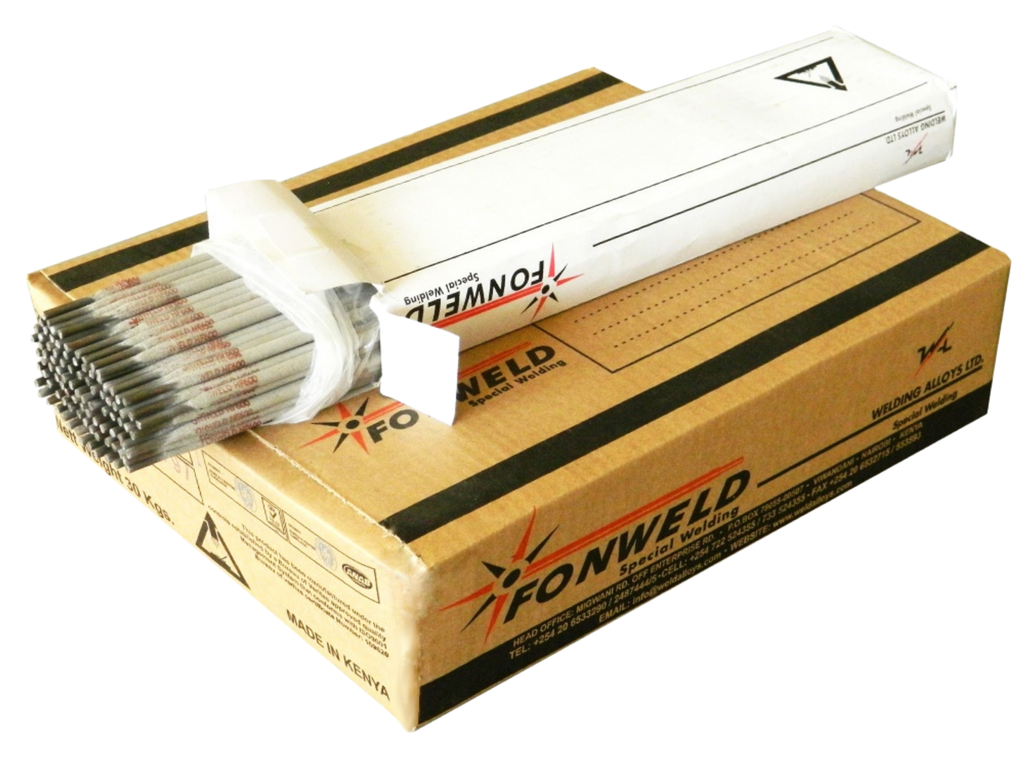

WELDING ROD FONWELD HARD-FACING HF600 5.0MM

Product Description

WELDING ROD FONWELD HARD-FACING HF600 5.0MM (PRICE PER KG) is a chromium-alloyed hardfacing electrode with a rutile coating, designed for building up and protecting steel components exposed to severe abrasive wear and impact. FONWELD HF600 produces smooth, even weld beads and a hard weld deposit offering very good resistance to abrasive wear. It is particularly suited to heavy-duty repair and maintenance of worn industrial and agricultural components.

Key Benefits and Features

• FONWELD HF600 chromium-alloyed hardfacing electrode.
• 5.0mm diameter for efficient deposition on larger worn areas.
• Rutile coating provides smooth and even weld beads.
• Offers very good abrasive wear resistance.
• Suitable for components exposed to abrasion combined with shock and impact.
• Good slag detachability for easier post-weld cleaning.
• Weld deposit hardness of approximately 54–58 HRC.
• Deposit is grinding-only machinable, making it suitable for wear-resistant overlays.
• Suitable for AC and DCEP current modes.
• Recommended welding current for 5.0mm electrodes: 160–260A.
• Standard 5.0mm electrode length: 450mm.
• Sold on a price-per-KG basis.

Essential Specifications

• Product Type: Hardfacing Welding Electrode
• Brand: FONWELD
• Grade: HF600
• Classification: DIN 8555: E 6-UM-55
• Coating: Rutile
• Diameter: 5.0mm
• Standard Length: 450mm
• Welding Current: 160–260A
• Current Mode: AC / DCEP
• Typical Weld Deposit Hardness: 54–58 HRC
• Machinability: Grinding Only
• Abrasion Resistance: Very Good
• Selling Basis: Price Per KG

Typical Applications

• Farming and agricultural equipment
• Excavator teeth
• Worm screws
• Crusher jaws
• Forestry tools
• Concrete mixer blades
• Crushing heads
• Stamping components
• Sliding and guide rails
• Earthmoving equipment
• Heavy-duty industrial wear-part restoration
• General hardfacing and maintenance applications

FONWELD HF600 5.0mm is a dependable choice for heavy-duty hardfacing where high abrasive-wear resistance, impact resistance, and durable protection of worn steel components are required.
