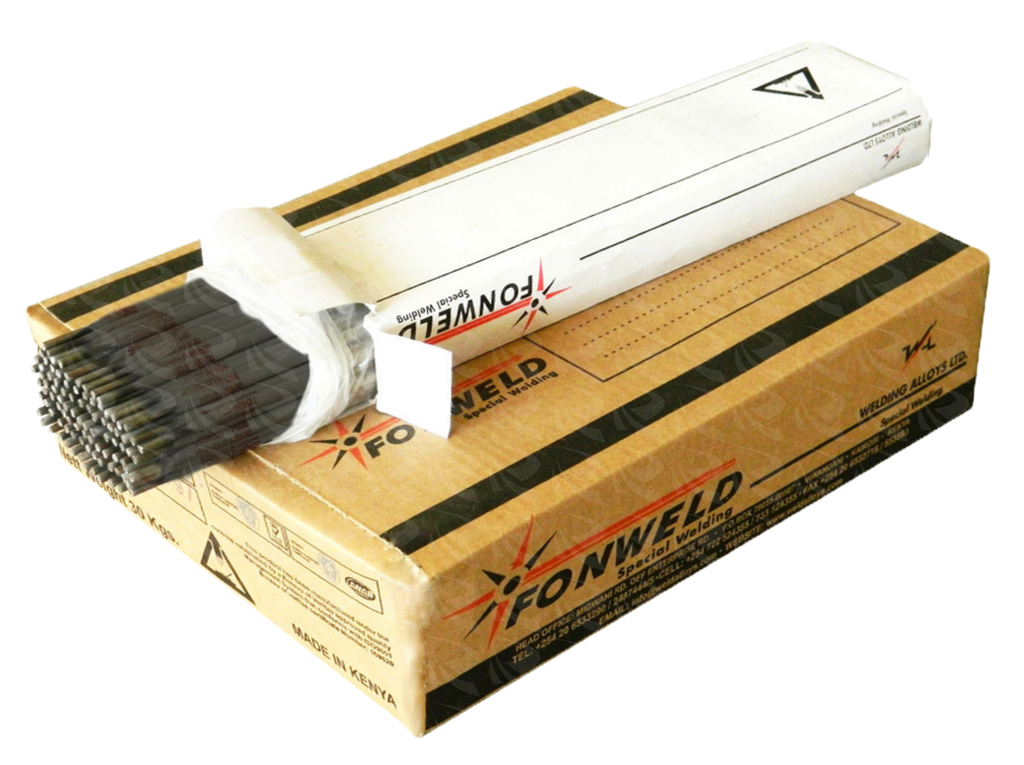

CAST IRON RODS NON MACHINABLE FONWELD E-117 4.0MM

Product Description

The CAST IRON RODS NON MACHINABLE FONWELD E-117 4.0MM are specially designed welding electrodes for the repair and welding of cast-iron components. FONWELD E117 features a steel wire core and special coating, producing a weld deposit that is non-machinable and intended to be finished by grinding. It is particularly suitable for repairing dirty or corroded cast iron and filling cavities in castings where the repaired area is not subject to significant mechanical loading.

The 4.0mm diameter is suitable for larger cast-iron repair and filling applications. The manufacturer specifies a 120–140 amp welding current range for the 4.0mm × 450mm electrode, using DCEP current.

Supplied in 5kg packets and priced per kilogram.

Key Benefits and Features

• FONWELD E117: Specialized electrode for cast-iron welding and repair.
• Non-Machinable Deposit: Designed to be finished by grinding rather than conventional machining.
• Steel Wire Core: Provides a suitable weld deposit for general cast-iron repair applications.
• Good Welding Characteristics: Suitable for welding in various positions.
• Good Bonding: Designed for effective bonding to cast-iron surfaces.
• Colour Match: Produces a weld deposit with a close colour match to the base metal.
• 4.0MM Diameter: Suitable for larger repair areas and cavity filling.
• 5KG Packet: Convenient quantity for workshop and maintenance requirements.
• Price Per KG: Allows straightforward purchasing and material costing.

Essential Specifications

• Product Type: Non-Machinable Cast Iron Welding Electrode
• Brand: FONWELD
• Classification: E117
• Diameter: 4.0MM
• Electrode Length: 450MM
• Core: Steel Wire
• Machinability: Non-Machinable; Grinding Only
• Current: DCEP
• Recommended Current: 120–140 Amps
• Packet Weight: 5KG/PKT
• Pricing Unit: Per KG

Typical Applications

• Cast-iron repair
• Repair of dirty or corroded cast iron
• Filling cavities in castings
• Foundry defect repair
• Cast-iron component maintenance
• Repair of damaged castings
• Machine and equipment maintenance
• General engineering workshop repairs
• Applications where the weld is finished by grinding

The FONWELD E117 4.0MM NON-MACHINABLE CAST IRON WELDING ROD provides a practical solution for larger cast-iron repair and cavity-filling applications where a well-bonded weld deposit can be finished by grinding.
