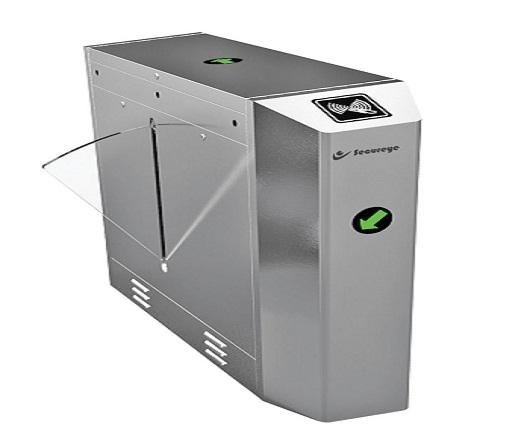

SINGLE CORE BRIDGE FLAP BARRIER S-FB1000S

Product Description

The Single Core Bridge Flap Barrier – S‑FB1000S is a pedestrian access control barrier designed to regulate and monitor foot traffic in entry/exit points. It features a single‑lane bridge flap mechanism with fast operation, robust stainless‑steel construction, and seamless integration with access control systems. This makes it ideal for offices, commercial buildings, transit hubs, retail entrances and other controlled environments where secure, efficient throughput is required.

Key Benefits and Features

• Sturdy Construction: Heavy‑duty 304 stainless steel housing for durability and long service life.
• Fast Operation: Opens/closes in about 0.6 seconds, reducing queues and improving flow.
• Efficient Throughput: Supports 30–40 people per minute for busy pedestrian areas.
• Wide Passage: Passage width of 500–600 mm for standard single‑lane entry.
• Access Control Integration: Compatible with access systems via Wiegand/RS485/RS232 interfaces.
• Weather & Environment Resilience: Operates in temperatures from −10 °C to +60 °C and up to 95 % humidity.
• Smooth Flap Action: Acrylic flap panels provide clear visibility and rapid response.
• Reliable Motor Drive: 24 V DC motor for stable, continuous performance.

Essential Specifications

General

• Model: S‑FB1000S
• Type: Single core bridge flap barrier
• Housing Material: 304 stainless steel
• Flap Material: Acrylic
• Lane Type: Single lane

Performance

• Unlock / Open Time: ~0.6 seconds
• Passing Speed: 30–40 persons/min
• Passage Width: 500–600 mm per lane

Motor & Control

• Motor Voltage: 24 V DC
• Power Supply: AC 220 V, 50 Hz
• Communication Ports: Wiegand / RS485 / RS232

Physical & Environmental

• IP Rating: IP55 (dust and splash resistance)
• Operating Temperature: −10 °C to +60 °C
• Humidity: Up to 95 % (non‑condensing)
• Working Current: ≤ 2000 mA
• Dimensions (excluding bars): H 980 × W 300 × D 1200 mm
• Bar Length: ~260 mm

Typical Applications

• Office building entrances & lobbies
• Retail and shopping center access points
• Transit stations and public facilities
• Secure zones in commercial campuses
