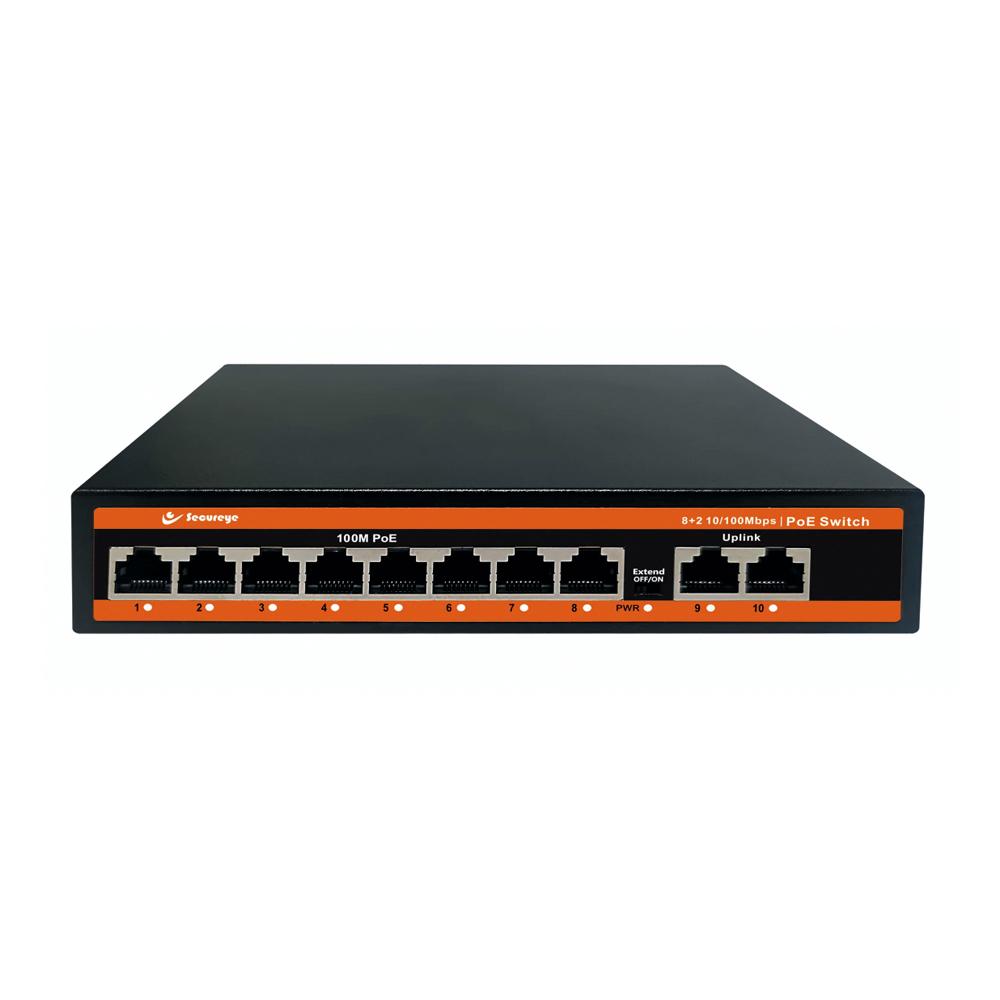

SECUREYE 8 PORT SWITCH

Product Description

The Secureye 8-Port Switch is a network switch with Power over Ethernet (PoE) capability, designed to connect and power IP cameras, VoIP phones, access points, and other network devices over a single cable. Available in several 8-port variants (Fast Ethernet or Gigabit PoE with uplinks and optional SFP ports), these switches simplify cabling and power for surveillance and network systems. They are suitable for CCTV deployments, small to medium office networks, and other structured LAN environments.

Key Benefits and Features

• Eight PoE Ports: Provides 8 PoE ports that supply power and data over Ethernet for cameras and other devices.
• Power over Ethernet (PoE): Complies with IEEE 802.3af/at standards, automatically detecting devices and supplying power without separate adapters.
• Uplink Connectivity: Many models include uplink ports (2× RJ45) and optional SFP slots for flexible connection to routers, NVRs, or other switches.
• Extended Transmission: Some variants support extended PoE reach up to ~250 m over Cat5e or better cables, helping connect remote cameras.
• Plug-and-Play: Easy setup with auto-negotiation and MDI/MDIX support, requiring no complex configuration for basic use.
• Fan-less Design: Quiet, compact and durable construction suitable for wall-mount or desktop installations.
• Network Stability: Supports VLAN, QoS, and AI Extend / AI PoE modes on some models to improve network traffic handling and video performance.

Essential Specifications

Ports & Interfaces

• PoE Ports: 8× RJ45 Ethernet ports (10/100 or 10/100/1000 Mbps depending on model)
• Uplink Ports: 2× uplink Ethernet (10/100/1000 Mbps) on many models
• SFP Ports: Optional 1–2 SFP slots for fiber uplink on gigabit PoE variants
• PoE Standard: IEEE 802.3af/at compliant
• PoE Power: Up to 30 W per port (max per supported device) and total PoE budget ~120–150 W (model dependent)

Performance

• Switching Capacity: ~2–20 Gbps (varies with Fast Ethernet or Gigabit model)
• MAC Address Table: ~1K–8K entries (varies by variant)
• Forwarding Rate: ~1.49 Mpps for Fast Ethernet; higher for gigabit models

Network Features

• Auto MDI/MDIX: On all ports for easy cabling
• VLAN & QoS: Supported on smarter switch models for improved security and performance
• Extend Mode: Longer PoE reach up to ~250 m on select models

Physical & Environment

• Design: Fan-less, compact metal enclosure
• Mounting: Desktop or wall mountable
• Indicators: LINK/ACT and PoE status LEDs on each port
• Operating Temp: ~0 °C to +55 °C typical

Power

• Input: AC 110–240 V with built-in power supply

Typical Applications

• IP CCTV surveillance systems where PoE powers cameras and transmits video.
• Small to medium-sized business LANs connecting phones, access points, and computers.
• Network expansion from a router to multiple devices with simplified cabling.
