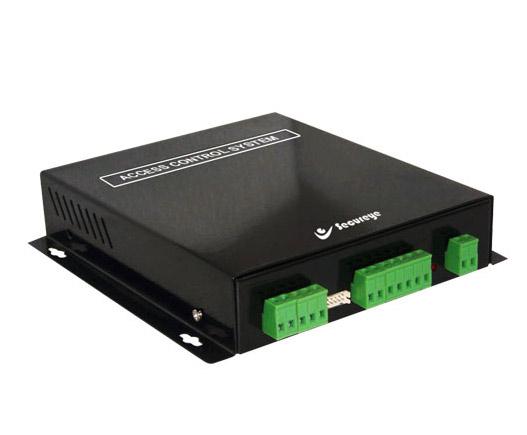

2 DOOR/4 READER ETHERNET CONTROLLER - S-IP2D4R

Product Description

The 2 Door / 4 Reader Ethernet Controller – S‑IP2D4R is a network‑enabled access control panel designed to manage up to two doors with four card readers (two readers per door for entry and exit). This controller connects directly to your local network (TCP/IP) for centralized access management, real‑time monitoring and remote configuration without needing dedicated PC software. It’s ideal for offices, institutions, commercial buildings and homes that require secure, scalable access control with flexible reader support and advanced authentication options.

Key Benefits and Features

• Ethernet Connectivity: Connects to your network via TCP/IP for centralized control and remote monitoring.
• Two Doors / Four Readers: Supports up to 4 readers to control 2 doors (in and out per door).
• Flexible Authentication: Integrates with Wiegand‑compatible card readers (26/34 bit) and supports multi‑method verification (e.g., card only, card + PIN).
• Web Server Function: Built‑in web server allows management and monitoring through a browser without additional software.
• Time Zones & Access Rules: Configurable time zones and user access schedules per group.
• Alarm & Safety Support: Handles alarm inputs (e.g., door open too long), remote door control, fire alarm triggers and anti‑passback logic.
• Real‑Time Logging: Stores and forwards access events with network syncing.
• Scalable & Integrated: Works with multiple controllers and readers, suitable for larger systems with centralized monitoring.

Essential Specifications

General

• Model: S‑IP2D4R
• Controller Type: Ethernet (TCP/IP) access control panel
• Doors Supported: 2
• Readers Supported: 4 (e.g., one in + one out per door)
• Supported Protocol: TCP/IP
• Card Reader Interface: Wiegand (compatible 26/34‑bit)

User & Event Capacity

• User Capacity: Typically configurable (varies by backend system and controller firmware)
• Event Logs: Stored and transmitted over network for remote review

Access Control & Alarms

• Alarm Inputs: Multiple alarm inputs (e.g., door sensor, fire alarm)
• Alarm Outputs: Door status and alarm relays
• Anti‑Passback: Supported
• Time Zones: Configurable access schedules

Power & Environment

• Supply Voltage: 12 V DC (typical)
• Current Consumption: < ~150 mA typical
• Power Consumption: ≤ ~10 W
• Operating Temp: −10 °C to +60 °C
• Humidity: 10 %–95 % RH

Physical

• Housing: Controller box (black)
• Installation: Indoor, near network and door hardware
