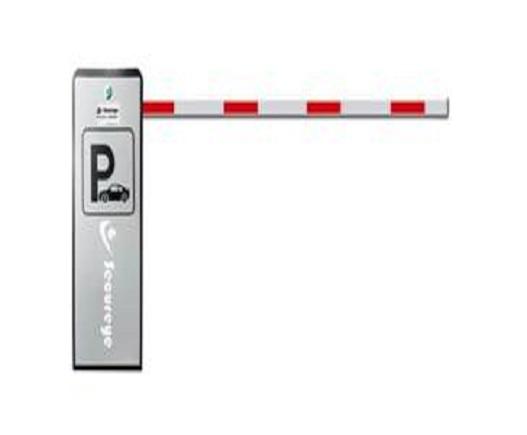

DC BARRIER GATE - BOOM BARRIER S-BB500DC

Product Description

The DC Barrier Gate – Boom Barrier S‑BB500DC is a direct‑current powered vehicle access control barrier designed to automate entry and exit points for parking lots, residential communities, commercial complexes and industrial facilities. It features a robust chassis with weather‑resistant protection and a fast‑acting boom arm, allowing reliable control of vehicle movement while integrating with access control systems like loop detectors and traffic lights.

Key Benefits and Features

• Fast & Efficient Operation: Opens and closes the boom arm in about 2 seconds for smooth vehicle throughput.
• Durable DC Motor: Uses a 24 V DC motor with a long rated life (~6 million cycles) for continuous use.
• Traffic Integration: Provides up/down signal relays and red/green traffic light outputs for automated signage control.
• Safety Interfaces: Includes anti‑smash sensor and loop detector interfaces to help prevent collisions with vehicles.
• Flexible Control: Can link with parking systems, remote controls and access control input signals.
• Remote Operation: Remote control operation distances up to ~100 m (in clear weather).
• All‑Weather Design: IP55 protection rating shields against dust, rain and outdoor conditions.
• Reversible Boom Direction: Boom arm direction can be changed quickly for installations requiring left or right arm configuration.

Essential Specifications

Mechanical & Motion

• Model: S‑BB500DC
• Boom Type: Straight aluminum boom (max 4 m)
• Opening/Closing Time: ~2 sec (for 4 m arm)
• Arm Direction: Quickly interchangeable
• Motor Working Life: ~6,000,000 cycles

Electrical

• Power Supply: 24/100/240 VAC, 50/60 Hz
• Driving Method: 24 V DC motor
• Rated Power: ~200 W
• Motor No‑Load Speed: ~3000 rpm
• Humidity: ≤ 90 %

Control & Interfaces

• Remote Control Distance: ≤ ~100 m (open, sunny conditions)
• Relay Outputs: Gate up/down and traffic light signal outputs
• Safety Interfaces: External loop detector and infrared anti‑smash sensor inputs

Environmental & Build

• Protection Grade: IP55 outdoor‑ready enclosure
• Operating Temperature: ~‑50 °C to +85 °C

Typical Applications:

• Parking entrances/exits
• Residential gated communities
• Office and commercial property access
• Industrial facilities and controlled zones
