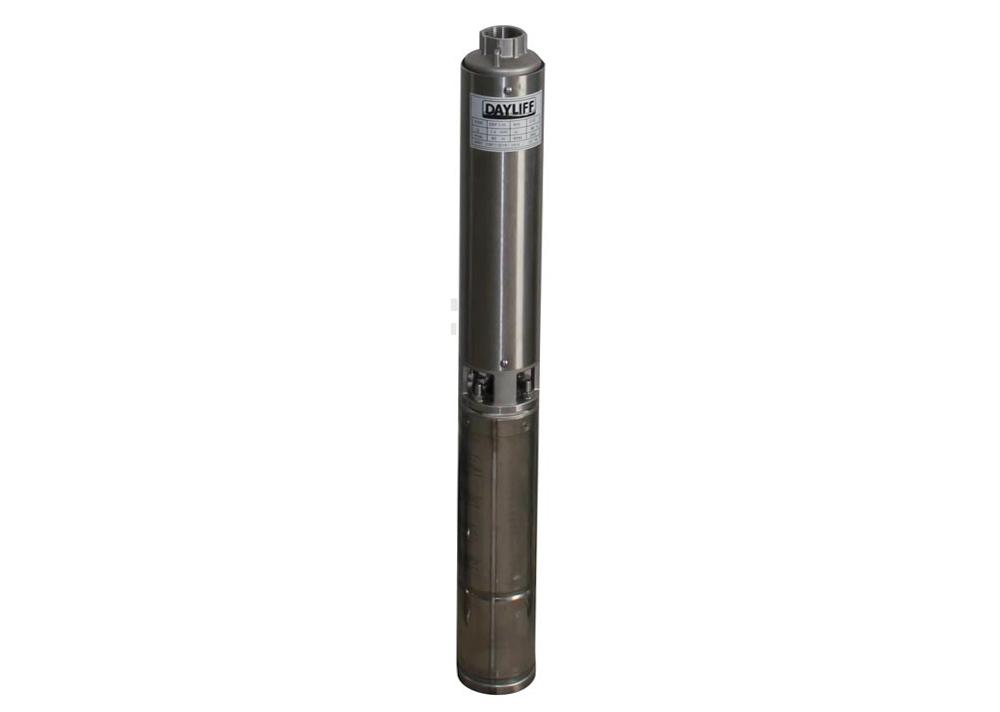

DAYLIFF DSP 1‑10 PUMP C/W MOTOR, CONTROL BOX

Product Description

The Dayliff DSP 1‑10 Pump with motor and control box is a submersible multistage centrifugal borehole pump system designed for reliable clean water supply from wells and boreholes for domestic and small‑scale use. It is part of the Dayliff DSP1 range of submersible pumps that combine high‑grade materials including Noryl floating type impellers and glass‑filled polycarbonate diffusers for excellent sand handling and wear resistance. The pump connects to a sealed stainless‑steel submersible motor and is supplied with a separate control box that houses an isolator, run indicator light, thermal overload protection and starting capacitor. The control box includes auxiliary terminals to accept a float switch, pressure switch or control probes enabling flexible automation options.

Key Benefits and Features

• Multistage centrifugal design delivers dependable head and flow performance suitable for borehole water extraction in domestic and light commercial applications.
• Pump components such as Noryl impellers, polycarbonate diffusers and stainless‑steel chambers offer excellent sand handling and long service life.
• Sealed submersible motor with robust stainless‑steel construction and high‑efficiency oil fill supports continuous submerged operation with corrosion resistance.
• Dedicated control box simplifies electrical setup and provides motor protection including thermal overload protection and starting capacitor. Auxiliary terminals allow connection of automation devices such as float switches or pressure probes.
• Enclosure class IP68 ensures safe performance when fully submerged in borehole installations.
• Compact vertical design supports installation in standard boreholes with minimum footprint and straightforward servicing.

Essential Specifications

• Model name: Dayliff DSP 1‑10 submersible multistage borehole pump with motor and control box.
• Pump type: Submersible multistage centrifugal borehole pump.
• Motor power: 0.37 kW (~0.5 HP).
• Supply voltage: 1 × 240 V AC single phase; speed ~2900 rpm.
• Rated current: ~3.3 A.
• Starting current (Istart/I): ~3.2×.
• Outlet connection: 1¼″ (DN 32).
• Maximum immersion depth: ~200 m.
• Maximum water temperature: +35 °C.
• Materials: Stainless‑steel discharge head, motor adaptor and pump casing with Noryl impellers and polycarbonate diffusers for sand handling and durability.
• Enclosure protection: IP68 for continuous submerged use.
• Insulation class: F.
• Control box features: isolator, run indicator light, thermal overload protection and starting capacitor; auxiliary terminals for control probes, float switch or pressure switch connection.
• Typical uses: domestic and light commercial borehole water supply, irrigation support and other clean water pumping tasks.
