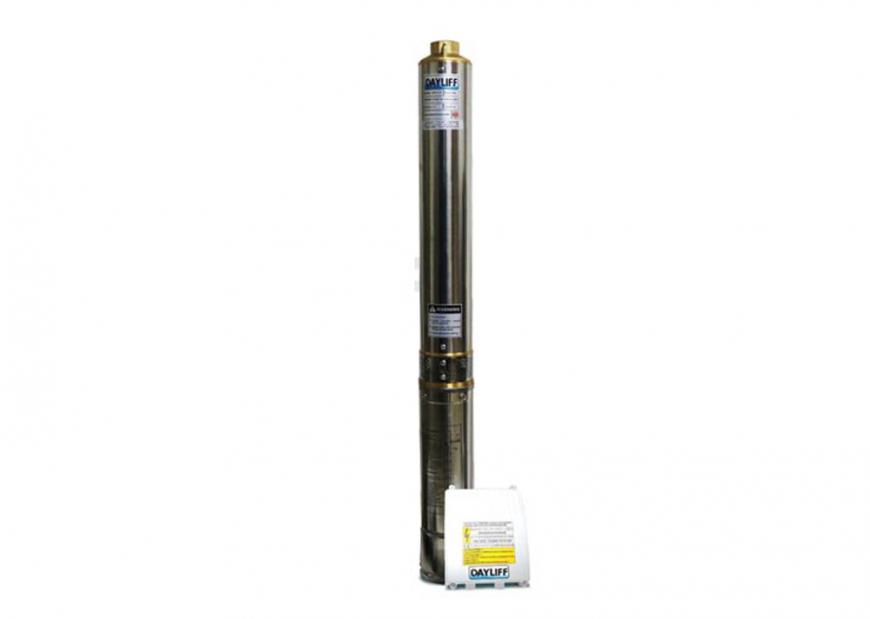

DAYLIFF DSD 3/13 PUMP C/W 30 CABLE + FLOATSWITCH

Product Description

The Dayliff DSD 3/13 Pump with 30 metre cable and float switch is a complete submersible multistage borehole water supply solution designed for domestic, agricultural or light commercial use. This model integrates a stainless‑steel multistage centrifugal pump with a sealed liquid‑cooled motor for reliable continuous operation in clean water. The unit is supplied with a purpose‑designed control box, heavy‑duty 30 m submersible cable and an automatic float switch that controls pump start/stop based on water level to help prevent dry running and simplify operation. This configuration is ideal for delivering water from boreholes and wells to overhead tanks, pressure systems or water distribution points.

Key Benefits and Features

• Multistage centrifugal pump design provides dependable head and flow performance for deep borehole water extraction and consistent supply to storage or pressure systems.
• Robust stainless‑steel housing, shaft and coupling with polycarbonate impellers and diffusers offer excellent corrosion resistance and extended service life in clean water environments.
• Sealed liquid‑cooled submersible motor with IP68 protection and B‑class insulation ensures stable and reliable submerged operation.
• Included float switch automatically starts and stops the pump based on water level reducing the risk of dry run damage and making operation more hands‑free.
• Control box with thermal overload protection simplifies electrical connection and enhances motor safeguarding.
• Supplied with a 30 m heavy‑duty submersible cable suitable for deep installations without need for extra wiring.

Essential Specifications

• Model name: Dayliff DSD 3/13 submersible borehole pump with control box, 30 m cable and float switch.
• Pump type: Multistage centrifugal submersible borehole pump.
• Motor power: 0.75 kW (~1 HP).
• Voltage: 1 × 240 V AC single phase; speed ~2850 rpm.
• Rated current: ~6.2 A.
• Outlet size: 1¼″ BSP.
• Maximum immersion depth: up to ~150 m.
• Maximum fluid temperature: +35 °C.
• Materials: AISI 304 stainless‑steel housing and shaft; polycarbonate impellers and diffusers; cast iron suction and delivery chambers.
• Enclosure class: IP68 for continuous submersible use.
• Insulation class: B.
• Cable length: 30 metre heavy‑duty submersible cable supplied.
• Float switch: Automatic float switch included for level‑based start/stop control.
• Typical uses: domestic borehole water supply, irrigation support, livestock watering and other clean water pumping tasks where automated level control is beneficial.
