DAYLIFF DSD 3/10 PUMP C/W 30 CABLE + FLOATSWITCH

Product Description

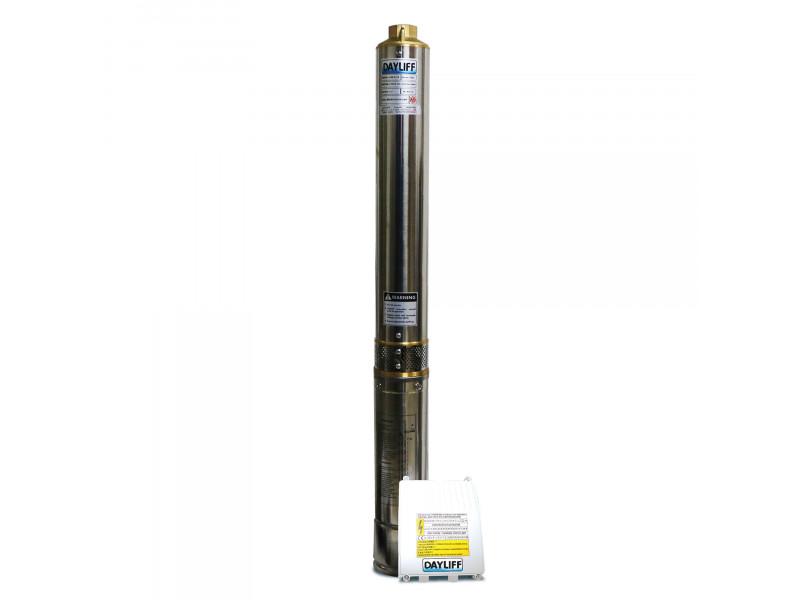

The Dayliff DSD 3/10 with 30 m cable and float switch is a multistage centrifugal submersible borehole pump supplied as a complete ready‑to‑install kit for clean water extraction from wells, boreholes and deep sumps. It belongs to the Dayliff DSD 3 series of stainless‑steel submersible pumps designed for dependable domestic, agricultural and light commercial water supply. This version includes a heavy‑duty 30 metre submersible power cable for deep installations and a float switch that automatically controls pump operation based on water level to help prevent dry running and simplify use. The compact vertical assembly includes a sealed liquid‑cooled motor with corrosion‑resistant wet end materials that support continuous submerged use in clean water with mild sand content.

Key Benefits and Features

• Multistage centrifugal pump design delivers dependable head and water delivery suited for elevated tank filling, pressure systems and consistent borehole water supply.
• Sealed liquid‑cooled stainless‑steel motor with IP68 submersible protection and B‑class insulation supports continuous submerged use.
• Corrosion‑resistant pump components including stainless‑steel housing, shaft and durable polycarbonate impellers and diffusers extend service life in clean water environments.
• Supplied with 30 metre heavy‑duty power cable for deep borehole installations without the need for additional wiring.
• Included float switch automates pump start/stop based on water level helping protect the pump from dry running and making operation more hands‑free.
• Purpose‑designed control box simplifies electrical connection and offers basic overload protection to help safeguard the motor.
• Compact and reliable unit suited for clean water supply to homes, livestock watering points and small irrigation systems.

Essential Specifications

• Model name: Dayliff DSD 3/10 submersible borehole pump complete with control box, 30 m cable and float switch.
• Pump type: Multistage centrifugal submersible borehole pump.
• Motor power: 0.55 kW (~0.75 HP).
• Voltage: 1 × 240 V AC single phase; speed ~2850 rpm.
• Rated current: ~4.7 A.
• Start current ratio: ~4× rated current.
• Outlet connection: 1¼″ BSP.
• Maximum immersion depth: up to ~150 m.
• Maximum fluid temperature: +35 °C.
• Materials: Stainless‑steel housing and shaft; polycarbonate impellers and diffusers; cast iron suction and delivery chambers.
• Enclosure class: IP68 submersible protection.
• Insulation class: B.
• Cable length: 30 m heavy‑duty submersible cable supplied.
• Float switch: Integrated automatic water level float switch included for start/stop control.
• Typical uses: domestic borehole water supply, irrigation support, livestock watering and other clean water pumping tasks where automated level control is beneficial.
