Product Description

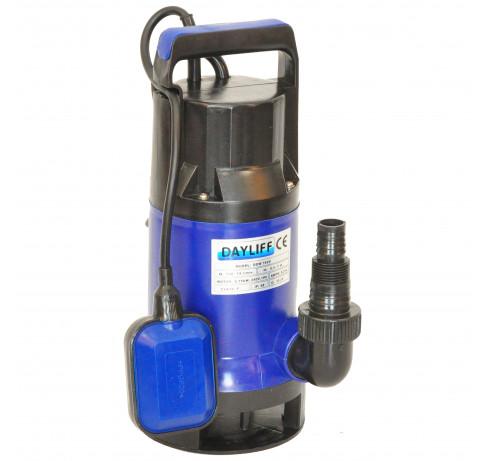

The Dayliff DDW 1000V is a submersible centrifugal drainage and water transfer pump designed for small-scale drainage, irrigation, pond/fountain work and general water movement tasks. It belongs to the DDW range of submersible pumps that are easy to install and operate, with a robust engineering-grade plastic body and vortex impeller specifically for handling water containing higher silt loads or light debris. An external float switch is fitted for automatic on/off control when the water level changes.

Key Benefits and Features

• Compact submersible design safe for installation up to ~7 m immersion depth.
• Vortex impeller allows the pump to handle water with higher silt content and small particles more reliably than standard open impellers.
• Constructed from high-strength engineering plastic for the pump casing, suction base and impeller — durable yet lightweight.
• Includes an external float switch for automatic startup and shut-off as water levels rise or fall.
• Supplied with a waterproof power cable (typically 5–10 m) and a union-connected outlet suitable for threaded or hose attachment.
• Integral non-overloading induction motor designed for continuous operation with thermal overload protection.
• Direct mains connection via a typical 10 A fuse or MCB — simple electrical setup.

Essential Specifications

• Model name: Dayliff DDW 1000V 1.0 kW submersible drainage pump.
• Pump type: Submersible centrifugal vortex drainage pump with float switch.
• Motor power: 1.0 kW (~1.34 HP) (vortex version).
• Voltage: 1 × 240 V AC single phase; speed ~2900 rpm.
• Motor current: ~4.2 A.
• Outlet connection: 1¼″ BSP union style.
• Maximum particle size: ~35 mm (vortex impeller handles larger debris than open types).
• Maximum fluid temperature: +35 °C.
• Maximum operating depth: ~7 m submersion.
• Pump construction: High-strength engineering plastic casing, suction base and impeller.
• Enclosure class: IPX8 for submersible use.
• Insulation class: F.
• Approximate pump weight: ~7 kg.
• Typical uses: drainage of flooded areas, sump drainage, irrigation water movement, pond/fountain water recirculation and general water transfer applications.
