Product Description

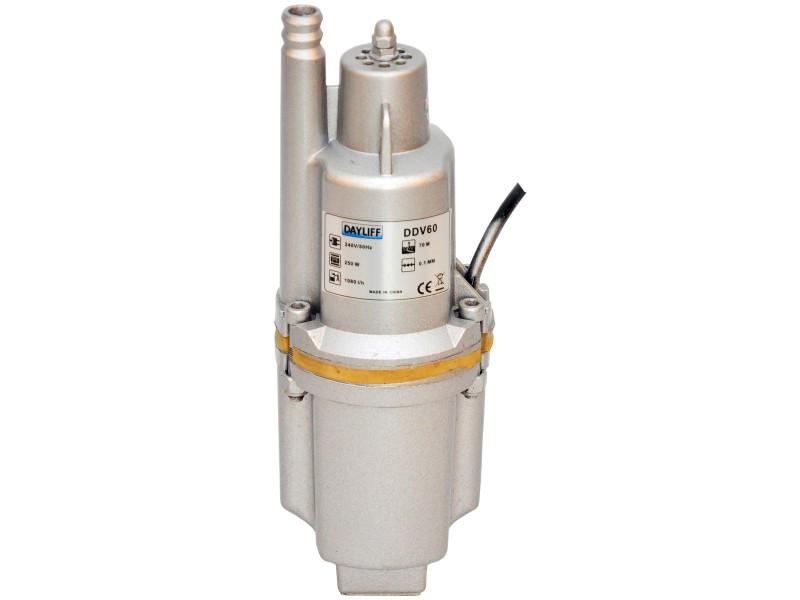

The Dayliff DDV60 is a submersible positive-displacement vibration diaphragm pump designed for small-scale water supply from wells, tanks, drums or rivers. Unlike standard centrifugal pumps, it uses a vibrating diaphragm to move water, making it efficient for shallow water sources and capable of handling thin water with light silt content. The compact and robust aluminium body with rubber diaphragm construction is ideal for simple installations in domestic water systems and shallow well setups, and the pump is installed by suspension below the water level.

Key Benefits and Features

• Positive-displacement vibration diaphragm design that delivers high output pressure from shallow water sources.
• Compact aluminium construction throughout with a rubber diaphragm and check valve for durability and ease of maintenance.
• Suitable for thin, clean water containing light silt loads — good for wells, tanks and rivers.
• Submersible design with IP68 enclosure class for safe performance when fully immersed.
• Easy to install by suspension in water; avoid rigid mounting to allow proper vibration action.
• Operates on standard single-phase 240 V supply through a fuse or MCB.

Essential Specifications

• Model name: Dayliff DDV60 vibration (submersible) pump.
• Pump type: Positive-displacement vibration diaphragm submersible pump.
• Motor power: 0.25 kW (~0.33 HP).
• Voltage: 1 × 240 V AC single phase.
• Outlet connection: ½″ BSP.
• Enclosure class: IP68 — suitable for submerged use.
• Insulation class: B.
• Maximum fluid temperature: 0 °C to +40 °C.
• Maximum operating pressure: up to 8 bar.
• Maximum immersion depth: ~3 m.
• Pump body material: aluminium, diaphragm and check valve rubber.
• Pump weight: ~4 kg.
• Typical pumped liquids: thin, clean, ‘sweet’ water containing light silt (avoid abrasive sand).
