Product Description

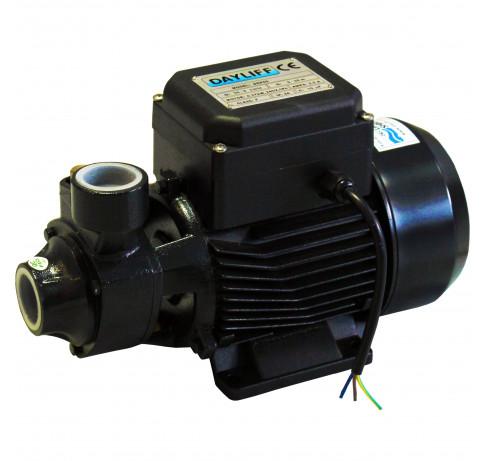

The Dayliff DDP60 is a 0.5 HP (0.37 kW) single‑phase centrifugal booster water pump designed for small‑scale domestic and light commercial water supply uses such as boosting pressure from tanks, mains or reservoirs and general water transfer. It’s built as a peripheral type pump with a robust cast iron body and brass impeller that deliver reliable water flow and dependable performance in household and small business settings.

Key Benefits and Features

• Reliable 0.5 HP motor provides consistent water pressure for showers, taps, irrigation and general supply.
• Cast iron pump body and brass impeller give durability and corrosion resistance for long‑lasting use.
• TEFC electric motor with built‑in thermal cut‑out protects against overheating and overload during continuous operation.
• Quiet‑running and compact design makes it suitable for installation near tank outlets or indoor pump rooms.
• Direct connection to 1 × 240 V AC mains via 10 A fuse or MCB — no special starter required.
• Ideal for boosting water supply in homes, small buildings, gardens, and small businesses.

Essential Specifications

• Model name: Dayliff DDP60 0.5 HP booster water pump.
• Pump type: Centrifugal peripheral booster/transfer pump.
• Motor power: 0.5 HP (≈ 0.37 kW).
• Voltage: 1 × 240 V AC single phase.
• Motor speed: ~2900 rpm.
• Enclosure class: IP44, insulation class F.
• Maximum suction lift: ~7 m at sea level.
• Pumped liquid type: thin, clean, chemically non‑aggressive water without solids or fibres.
• Maximum fluid temperature: +60 °C and maximum ambient temperature +40 °C.
• Connections: 1″ inlet / 1″ outlet (DN1 & DN2).
• Approximate dimensions: 265 × 118 × 151 mm (L × W × H).
• Approximate weight: ~5.3 kg.
• Typical applications: domestic water boosting, irrigation support and light commercial water supply.
