Product Description

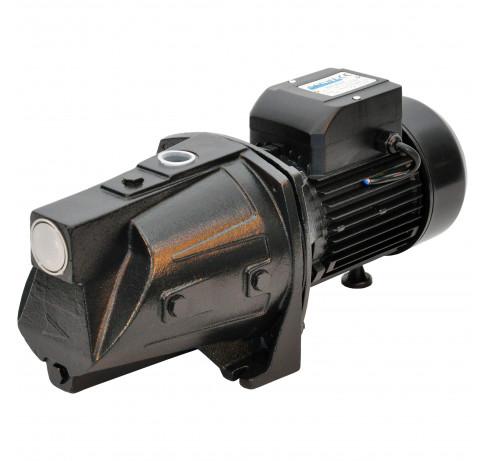

The Dayliff DDJ 750 is a centrifugal jet type domestic water pump designed for small‑scale domestic and light commercial water supply needs where reliable self‑priming and good suction performance are required. It features an integral ejector that improves suction lift performance and efficiency. The pump body is solidly built from cast iron, and the ejector and impeller are made from engineering plastic. It is close‑coupled to a TEFC electric motor with thermal overload protection, making it suitable for continuous operation in typical household water systems.

Key Benefits and Features

• Designed to provide self‑priming performance with an integral ejector unit for effective suction.
• Close‑coupled TEFC motor with built‑in thermal overload protection for safety and continuous use.
• Cast iron pump body with engineering plastic ejector and impeller ensures durability and corrosion resistance.
• Simple mains connection direct to a 10 A fuse or MCB — no external starter required.
• Suitable for thin, clean, chemically non‑aggressive water — ideal for homes and light commercial installations.
• Good suction lift performance up to ~9 m at sea level.

Essential Specifications

• Model name: Dayliff DDJ 750 centrifugal jet pump.
• Pump type: Centrifugal jet self‑priming domestic water pump.
• Motor power: 0.75 kW (~1 HP).
• Current draw: ~5.2 A.
• Voltage: 1 × 240 V AC and speed ~2900 rpm.
• Enclosure Class: IP44, Insulation Class F.
• Inlet size: 1″, Outlet size 1″.
• Maximum suction lift: ~9 m at sea level.
• Maximum fluid temperature: +50 °C, Maximum ambient temperature +40 °C.
• Pump dimensions: 435 × 191 × 200 mm (L × W × H).
• Pump weight: ~17 kg.
• Recommended pumped liquids: Thin, clean, chemically non‑aggressive water without solids or fibres.
