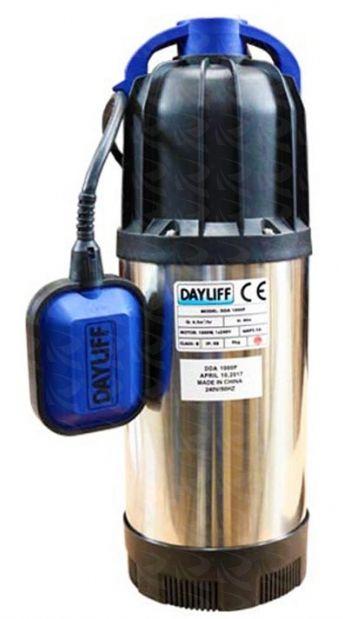

DAYLIFF DDA1000P
DAYLIFF DDA 1000P
Product Description
The Dayliff DDA 1000P is a submersible multistage centrifugal pump designed to handle clean, chemically non‑aggressive water in various domestic and light‑duty applications. It is particularly suited for well, borehole and tank installations, irrigation systems, water transfer and light pressure boosting. The pump uses a jacketed motor for efficient cooling during semi‑submerged operation and features a low‑level float switch and inbuilt capacitor for simplified automatic installation. All pumps in the DDA range are supplied with a 20 m cable for convenient depth installations.
Key Benefits and Features
- Powerful 1.3 HP / 1.0 kW motor with 2900 rpm operation for efficient water delivery.
- Multistage centrifugal design improves pressure and flow for reliable performance.
- Jacketed motor cooling allows safe semi‑submerged operation in wells or tanks.
- Low‑level float switch and inbuilt capacitor reduce installation complexity and help prevent dry running.
- Compact and lightweight design makes the pump easy to install and handle.
- Suitable for a wide range of uses, including domestic water supply, irrigation, tank filling and light pressure boosting.
- Robust construction with quality materials for long‑lasting durability.
Essential Specifications
- Model name: Dayliff DDA 1000P submersible multistage centrifugal pump.
- Motor power: 1.3 HP / 1.0 kW.
- Voltage: 1 × 240 V AC.
- Speed: 2900 rpm.
- Maximum current: ~5 A.
- Outlet connection: 1″.
- Maximum immersion depth: ~7 m.
- Maximum liquid temperature: ~35 °C.
- Maximum particle size: ~1.5 mm.
- Pump dimensions: approx 440 mm (H) × 150 mm (W).
- Weight: approx 9.4 kg.
- Typical applications water supply from wells, boreholes and tanks, irrigation systems, water transfer and light pressure boosting tasks.
