Product Description

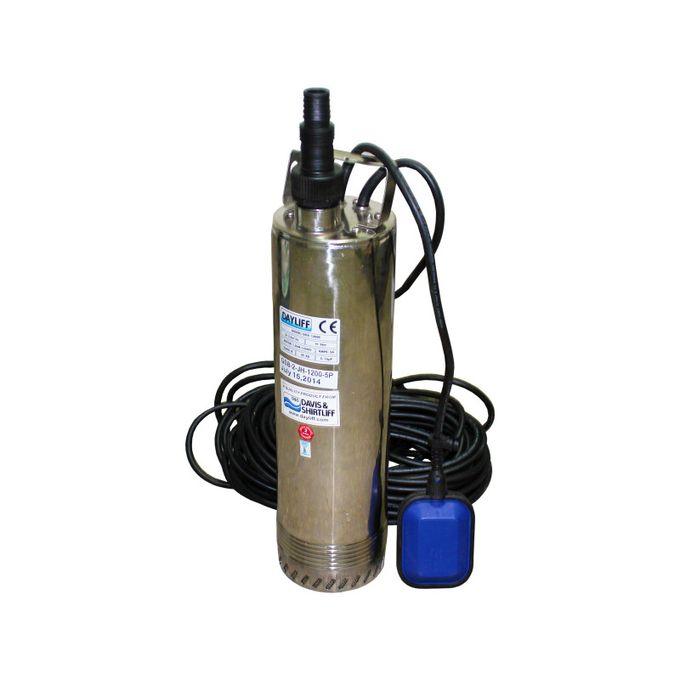

The Dayliff DDA 600C is a submersible multistage centrifugal pump designed for pumping clean, chemically non‑aggressive water in domestic tank and well applications. It features a jacketed motor for liquid cooling, making it suitable for semi‑submerged operation in wells and tanks. The pump is fitted with a low‑level float switch with adjustable clamp and an inbuilt capacitor for simplified installation and automatic control in most water supply setups.

Key Benefits and Features

• Automatic operation is possible by fitting a pressure controller (sold separately) for hands‑free water supply control.
• Low‑level float switch with adjustment clamp and built‑in capacitor helps simplify installation and prevents running without water.
• Liquid‑cooling jacketed motor enables extended duty and reduces overheating risk during submerged use.
• Enclosed, rewindable induction motor with thermal cut‑out protects against overloading and enhances reliability.
• Polypropylene impellers and diffusers with a stainless steel casing provide corrosion resistance and long life.
• Supplied complete with 20 m cable for convenient installation in deeper wells or tanks.

Essential Specifications

• Model name - Dayliff DDA 600C submersible multistage centrifugal pump.
• Pump type - submersible multistage centrifugal complete with float switch and inbuilt capacitor.
• Motor power - 0.55 kW (~0.75 HP).
• Voltage - 1 × 240 V AC.
• Nominal - speed 2900 rpm.
• Maximum current - 5.9 A.
• Outlet connection - 1″.
• Maximum particle size - 1 mm.
• Maximum immersion depth - 20 m (semi‑submerged).
• Maximum liquid temperature - 35 °C.
• Dimensions (H × W) - approx 538 × 128 mm.
• Weight - approx 15 kg.
• Typical uses water supply from tanks and shallow wells, irrigation support, pressure boosting and general clean water pumping applications
