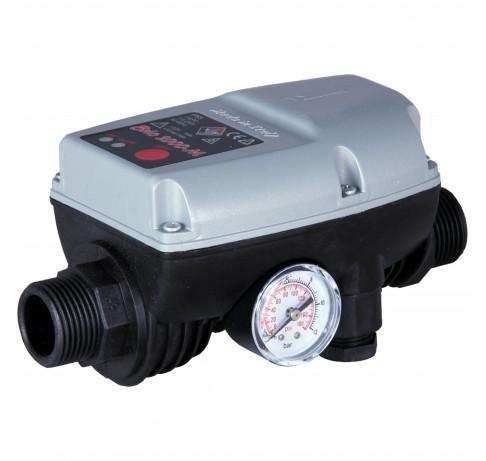

DAYLIFF BRIO PUMP CONTROLLER

Product Description

The Dayliff Brio Pump Controller is an in‑line electronic automatic controller that manages the operation of a water pump by sensing system pressure and flow — ideal for domestic or light commercial water supply systems. It automatically starts the pump when pressure drops and stops it when the demand ends, eliminating the need for manual switching or a separate pressure tank. Its built‑in timer also helps prevent rapid cycling during low‑flow conditions.

Key Benefits and Features

• Automatic start/stop based on pressure: The controller senses pressure drop and starts the pump automatically, then stops it once normal pressure is restored.
• Built‑in timer for cycling control: Helps manage pump cycling during slow draws (e.g., small leaks), reducing wear and extending pump life.
• Dry‑run protection with automatic reset: The Brio unit detects low flow or loss of water and stops the pump to protect against dry running, then will restart when safe conditions return.
• LED status indicators: Displays power and pump running/dry‑run conditions to help you monitor performance at a glance.
• Built‑in pressure gauge: Provides a visual indication of system pressure for easy checking without additional tools.
• Compact, weather‑resistant housing: Designed for installation near the pump or in a pump room with IP65 protection (sealed against dust and moisture).

Essential Specifications

• Control Type: In‑line electronic automatic controller (pressure/flow‑based).
• Max Motor Size: Up to 1.5 kW (single phase) — suitable for many household and small commercial pumps.
• Max Current: ~12 A — adequate for typical domestic pump loads.
• Max Operating Pressure: 10 Bar — suitable for most residential supply pressures.
• Connection Size: 1″ M threaded pump connection — common on many pump discharge lines.
• Temperature Range: Up to ~55 °C fluid/ambient.
• Protection Rating: IP65 — dust tight and protected against water jets.
• Dimensions (approx): ~190 × 105 × 96 mm — compact and easy to mount near the pump.
• Typical Use: Automatic control for domestic and small commercial pump systems where consistent water pressure and protection against dry run are needed.
