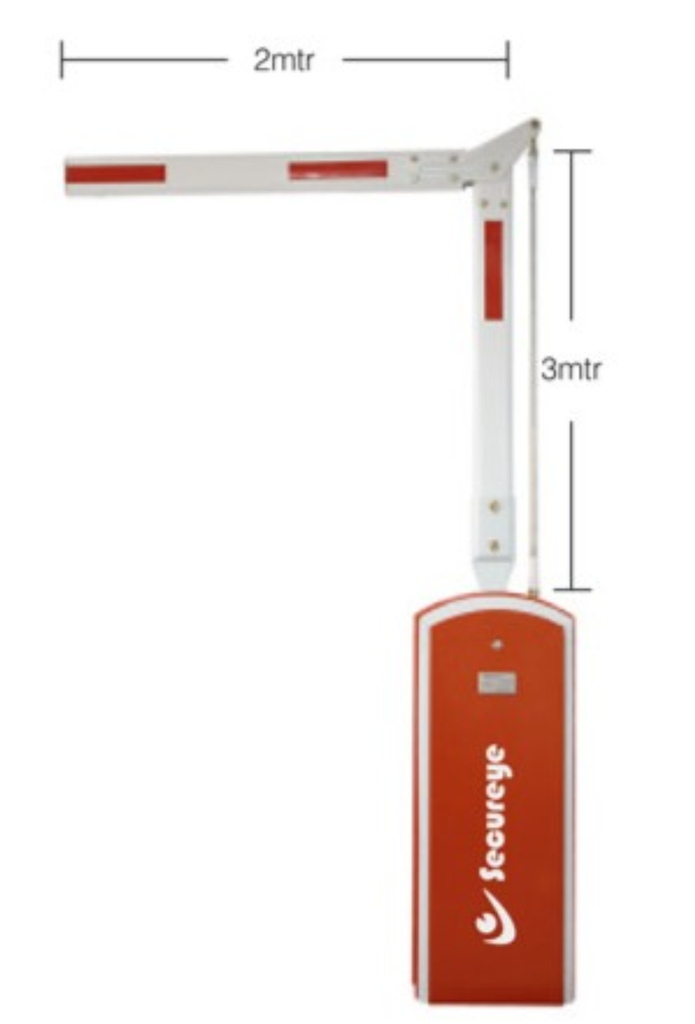

AUTOMATIC ARTICULATED BOOM BARRIER UPTO 5 METER S-BB200

Product Description

The Automatic Articulated Boom Barrier up to 5 Meter – S‑BB200 is a motor‑driven vehicle access control barrier designed for high‑traffic entrance points such as parking lots, gated communities, commercial sites and industrial checkpoints. It automates the raising and lowering of a boom arm to regulate vehicle entry, offering improved security, faster traffic flow and reliable performance in demanding environments. This model features a robust construction with weather‑resistant protection and fast operation for continuous use.

Key Benefits and Features

• Automated Vehicle Control: Automatically raises and lowers the barrier arm to control vehicular access without manual intervention.
• Robust Construction: Built with a weather‑resistant body and strong drive mechanism suitable for outdoor conditions.
• Fast Operation: Quick opening and closing action improves traffic flow efficiency.
• Continuous Duty Cycle: Rated for 100 % duty, allowing frequent operation throughout the day.
• Easy Integration: Can be paired with access control systems such as RFID readers, remote controls or loop detectors for automated access setups.
• Manual Override: Barrier can be manually operated in case of power failure for continuous access control.
• Suitable for Busy Sites: Designed to handle high vehicle flow scenarios, such as parking entrances and toll booths.

Essential Specifications

Barrier Arm & Drive

• Maximum Boom Length: Up to ~5 m (articulated/extendable based on site requirement – typical for similar barriers)
• Boom Material: Aluminium boom with protective covering (foam or similar)
• Motor Capacity: ~75 W torque motor
• Torque: ~100 Nm (operator)
• Opening Time: ~0.9–1.2 s (fast action)

Power & Duty

• Power Supply: 230 V AC mains
• Power Consumption: ~80 W
• Duty Cycle: 100 % continuous operation
• Suggested Cycle: ~3000 operations per day

Build & Environment

• Protection Grade: IP55 weather‑resistant housing
• Operating Temp Range: Approximately −10 °C to +60 °C
• Operator Weight: ~50 kg

Control & Integration

• Control Options: Remote control, access reader interfaces, loop detectors (optional accessories)
• Manual Override: Available for power‑failure situations

Typical Applications: Parking facility entrances, commercial buildings, gated communities, residential estates, industrial access points, toll plazas and other vehicle access control scenarios.
