AHD 5MP DOME CAMERA S A D5
AHD 5MP FALCON DOME CAMERA.. - S-A-D5
AHD 5MP FALCON DOME CAMERA.. - S-A-D5
Product Description

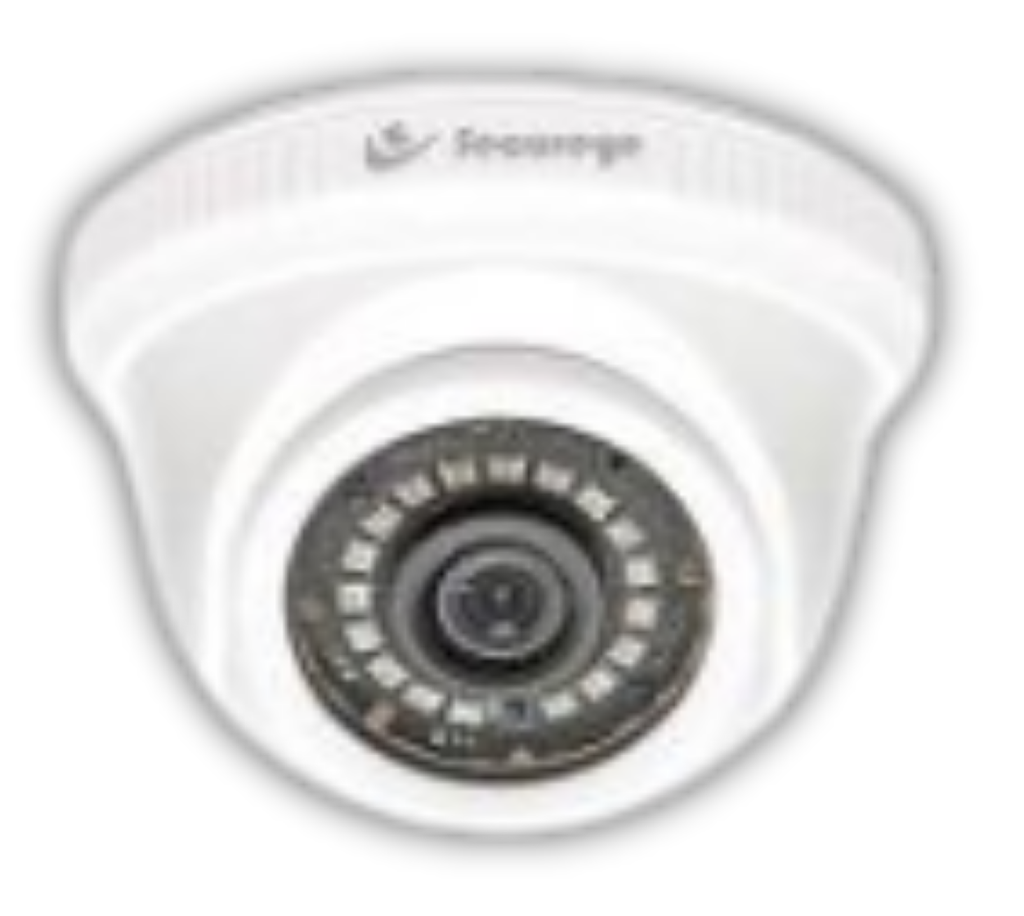

The AHD 5MP Falcon Dome Camera – S‑A‑D5 is a 5 megapixel high‑definition analog CCTV camera designed for versatile surveillance with broad format support. It delivers crisp, detailed video and features infrared night vision for clear imaging in low light. Built to work with AHD, TVI and other analog DVR/XVR systems, this dome camera is suitable for homes, shops, offices and outdoor areas that need reliable, high‑resolution monitoring.
Key Benefits and Features
- High‑Definition 5 MP Video – Produces sharp 2560 × 1960 resolution footage for clearer object and face detail.
- Multi‑Format Output – Compatible with AHD, TVI (and in some setups with CVI/CVBS) for flexible DVR/XVR connectivity.
- Strong Night Vision – 12 micro‑LEDs provide effective IR illumination up to ~20–30 m in darkness.
- Day/Night Auto Switching – Automatic ICR filter changes between colour and infrared modes for continuous surveillance.
- Low Light Performance – 0 Lux with IR on means the camera still captures usable images with no ambient light.
- Robust Build – Designed for indoor/outdoor use with weather‑tolerant housing and straightforward installation.
Essential Specifications
Video & Imaging
- Resolution: 5 MP (2560 × 1960)
- Image Sensor: 1/3″ Megapixel CMOS
- Lens: 3.6 mm fixed
- Video Output: AHD / TVI (analog)
- Signal System: PAL / NTSC
- Day/Night: Auto ICR / Colour / B&W
Night Vision
- Minimum Illumination: 0 Lux with IR on
- IR LEDs: 12 Micro‑LEDs
- IR Range: ~20 – 30 m
Camera Features
- BLC / AWB: Auto Backlight Compensation & Auto White Balance
- Synchronization: Internal
General & Environmental
- Power Supply: DC 12 V ±10 %
- Power Consumption: ~5 W (max)
- Operating Temp: −10 °C to +60 °C
- Humidity: < 95 % RH
