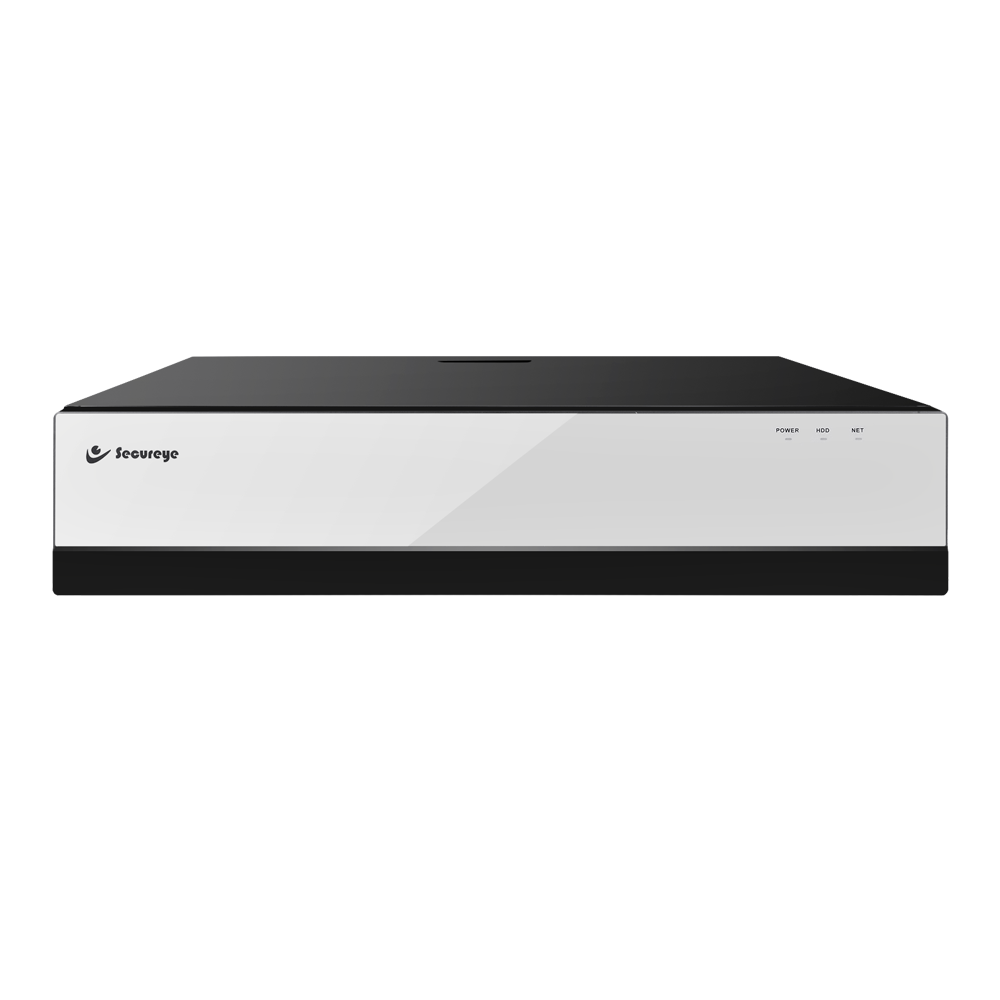

64CH FALCON NVR 4K SERIES / 8SATA - S-NVR-10

Product Description

The 64CH Falcon NVR 4K Series / 8SATA – S‑NVR‑10 is a robust and high‑capacity network video recorder built for large‑scale IP surveillance systems. It supports up to 64 IP camera channels with 4K HDMI output and advanced smart analytics. With eight internal SATA bays for extensive storage capacity, this NVR is ideal for commercial buildings, campuses, airports, retail complexes and other environments that require high‑resolution video recording, efficient bandwidth handling and remote management.

Key Benefits and Features

• 64‑Camera Support: Designed to manage and record video from up to 64 IP cameras.
• 4K Video Output: HDMI output supports 4K (3840 × 2160) resolution for sharp live viewing.
• Advanced Compression: Utilises H.265+ / H.265 / H.264+ / H.264 to reduce storage and bandwidth use.
• Smart Analytics: Includes detection functions such as area intrusion, line crossing, object missing, unattended object, loitering and people/vehicle detection.
• Large Storage Capacity: 8 SATA interfaces, each supporting large‑capacity drives, for long‑term recording.
• Flexible Playback: Smart, normal, event, picture and label playback modes speed up review.
• Cloud Support: Cloud storage and cloud software upgrades to keep the system updated.
• Remote Access: View live feeds and recordings on mobile devices (iOS/Android) or via web browser.
• Standard Protocols: Compatible with ONVIF, RTSP, DDNS, SMTP and other common network protocols.

Essential Specifications

System & Performance

• Model: S‑NVR‑10
• Chipset: Hi3536
• IP Video Input: 64 channels
• Two‑Way Talk: 1‑ch (RCA)

Video & Audio Output

• HDMI: 1 × 4K (3840×2160) / 30 Hz and lower resolutions
• VGA: 1 × 1080p and lower resolutions
• Audio Output: 2‑ch (RCA)

Recording & Compression

• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Supported Resolutions: Up to 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF, QCIF

Playback & Backup

• Playback Resolutions: Same as recording resolutions
• Decoding Capability: 16 ch @ 1080P
• Playback Modes: Smart / Normal / Time Division / Label / Event / Picture Playback
• Backup: USB device / Network / eSATA

Storage

• SATA: 8 internal bays, support high‑capacity drives (each up to ~8 TB and above, depending on HDD support)

Network

• Incoming Bandwidth: ~320 Mbps
• Outgoing Bandwidth: ~256 Mbps
• Ethernet: 2 × RJ45 10/100/1000 Mbps
• Network Protocols: HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, DDNS, FTP, P2P, ONVIF
• Mobile Support: iOS (iPhone, iPad), Android (phone/tablet)

Interfaces & I/O

• USB: 2 × USB 2.0 (front), 1 × USB 3.0 (rear)
• eSATA: 1 × eSATA
• RS485: 2 ports
• Alarm I/O: 16 alarm inputs, 4 alarm outputs

General

• Power Supply: AC 100‑240 V
• Power Consumption: ≤20 W (without HDD)
• Operating Environment: –10 °C to +55 °C / 10%–90%RH
