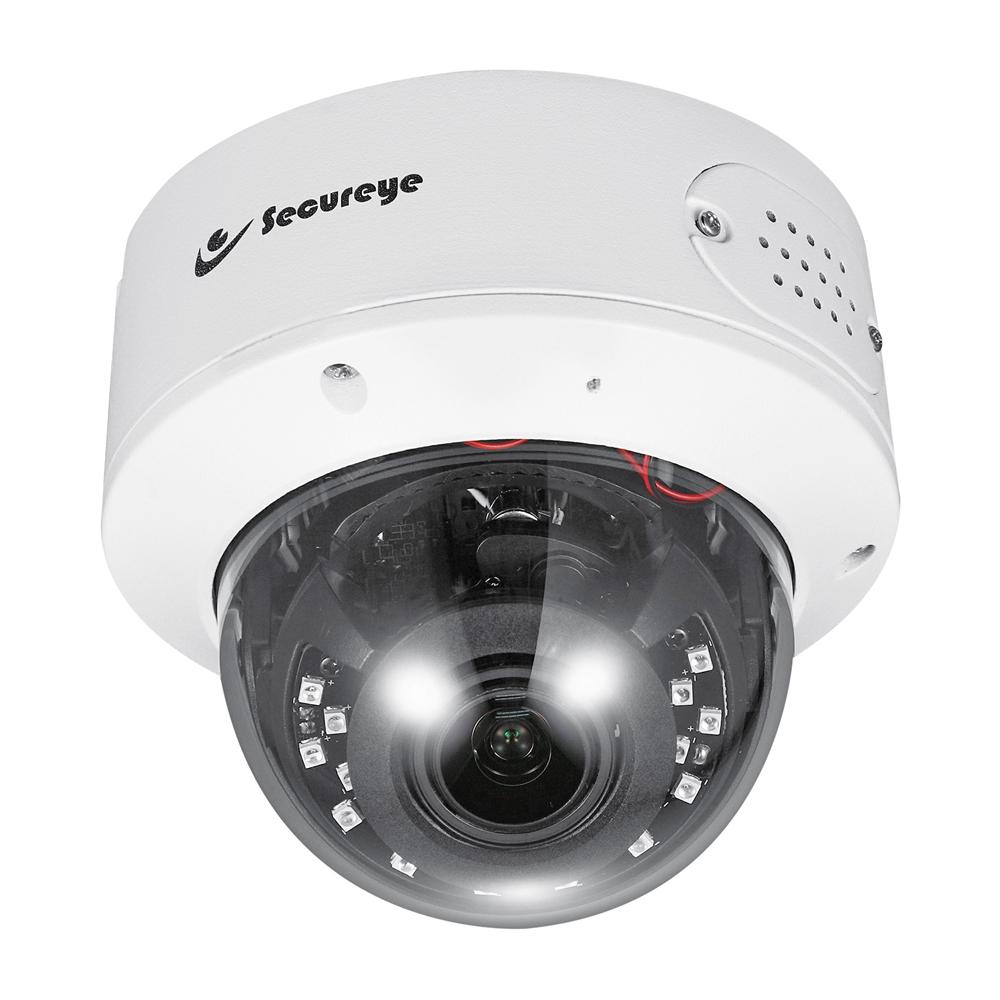

5MP METAL DOME IP, 2.8-12MM MOTORIZED ,MIC & SPEAKER, ALARM 1 IN 1 OUT, TF CARD SLOT - ST-IP-DM-009

Product Description

The 5MP Metal Dome IP Camera with Motorized Lens, Mic & Speaker, Alarm I/O, TF Card Slot – ST‑IP‑DM‑009 is a high‑performance network surveillance camera designed for both commercial and residential security systems. It delivers 5 megapixel resolution with a 2.8–12 mm motorized lens that allows remote zoom and focus adjustment for tailored field of view. The camera features built‑in two‑way audio, alarm input/output, local storage via TF card, and smart detection functions for reliable monitoring in diverse environments. Its weather‑resistant metal housing and PoE support make it suitable for outdoor installation.

Key Benefits and Features

• High‑Resolution Video: Provides 5 MP (2592 × 1904) surveillance footage for detailed image clarity.
• Motorized Lens: 2.8–12 mm motorized varifocal lens for remote adjustment of viewing angle and zoom without manual focus changes.
• Two‑Way Audio: Built‑in microphone and speaker enable communication through the camera.
• Alarm Integration: 1 alarm input and 1 alarm output allow connection with external sensors or alarm systems.
• Local Storage: TF card slot supports memory cards up to large capacities for on‑camera recording without external storage.
• Smart Detection: Includes built‑in human detection algorithm to help focus alerts on relevant events.
• Efficient Video Compression: Uses H.265/H.264 encoding to save bandwidth and storage.
• Night Monitoring: Smart IR and ICR auto day/night switching maintain visibility in low light.
• Network Compatibility: Supports ONVIF and SLINK† protocols for integration with recorders and VMS.
• PoE Support: Built‑in PoE (Power over Ethernet) simplifies installation with a single cable for power and data.
• Weather‑Resistant: IP66 rated housing protects against dust and rain for outdoor use.

Essential Specifications

Video & Imaging

• Resolution: 5 MP (2592 × 1904@20 fps), 4 MP (2560 × 1440@25 fps)
• Lens: Motorized 2.8–12 mm
• Sensor: 1/2.7″ progressive scan CMOS
• Min. Illumination: Colour 0.1 Lux @ F1.2 / B&W 0 Lux (IR on)
• Day/Night: ICR infrared filter auto switch
• Smart IR: Automatic IR to prevent overexposure at night
• Noise Reduction: 3D DNR
• WDR: DWDR selectable

Video Compression & Streams

• Formats: H.265 / H.264
• Main Stream: Up to 5 MP @ 20 fps
• Sub Streams: Multiple resolution options (D1, VGA, etc.)

Audio & Alarm

• Audio: Built‑in mic & speaker
• Alarm: 1 alarm input, 1 alarm output

Network & Storage

• Network: 1× RJ45 10/100 Mbps
• Protocols: TCP/IP, UDP, HTTP, DHCP, RTSP, NTP, ONVIF, SLINK
• PoE: Supported
• TF Card Slot: Supports up to 512 GB microSD (EXT3/EXT4)

Physical & Environmental

• Weatherproof Rating: IP66
• Operating Temp: −20 °C to +55 °C
• Power: DC12 V / PoE
• Power Consumption: < 10 W (max)
